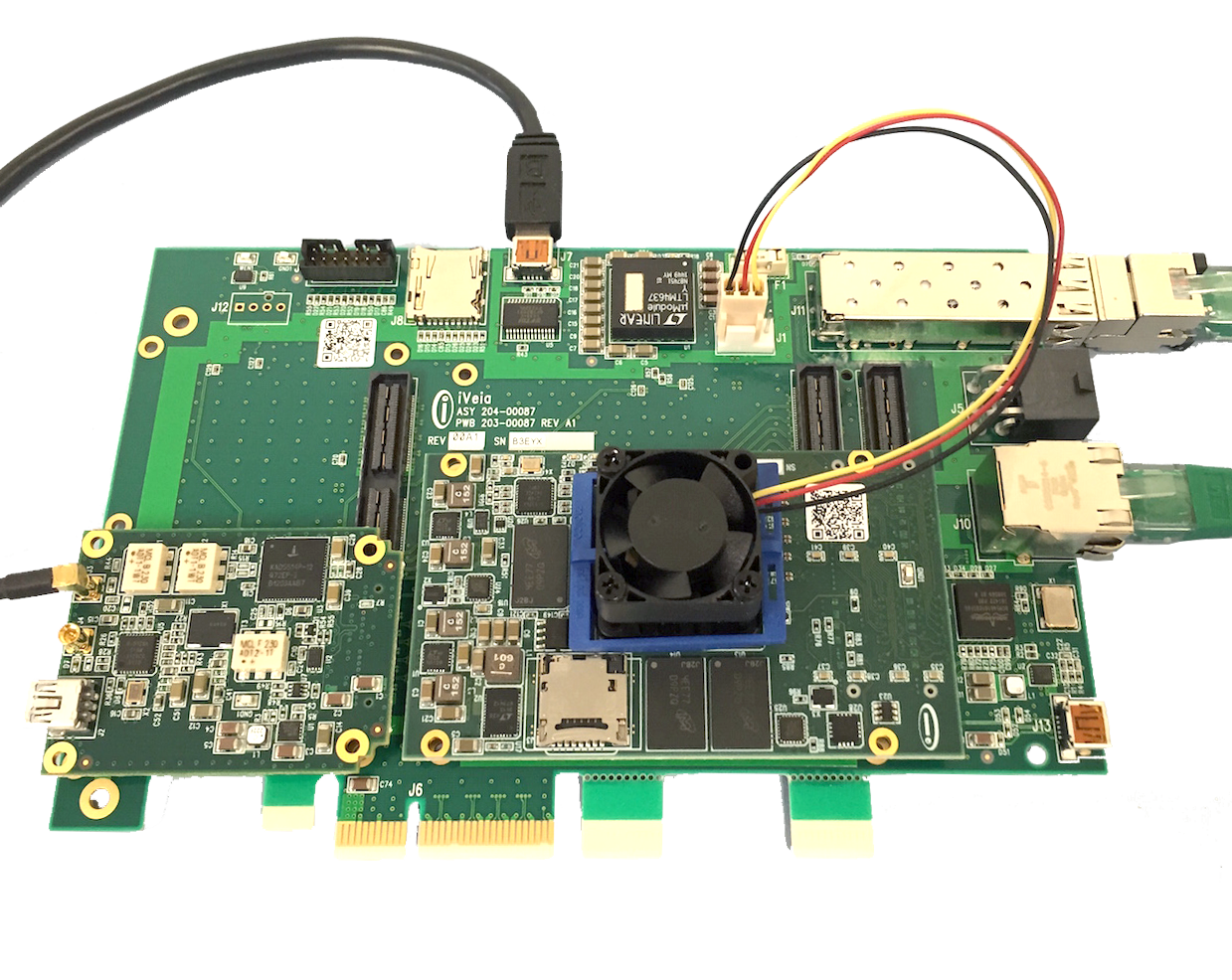

Mini-Flex I/O and PCIe Atlas Baseboard


  • Size 5.00″ x 3.75″ x 0.83″ (127.0 x 95.3 x 21.1 mm)
  • Atlas-I, Atlas-II, or Atlas-III processor module sites
  • Dual Mini-Flex I/O module site (click here for I/O options)
  • Full Embedded Linux distribution and API’s supplied and supported by iVeia
  • Reference designs for video, instrumentation, and software-defined radio


  • Atlas-I, Atlas-II, or Atlas-III processor sites
  • Stand-alone or PCIe plug-in card operation
  • PCIe x4 support, up to Gen4 (with Atlas-II-Z8 module)
  • High-speed data through SFP+ module (10 GigE supported)
  • Dual Mini-Flex I/O sites (see options below)
  • Gigabit Ethernet
  • One USB 2.0 On-The-Go (OTG) interface
  • Locking connectors for rugged and industrial applications
  • On-board 10 MHz TCXO oscillator
  • Battery-backed real-time clock
  • USB to UART for console or auxiliary UART
  • JTAG port for debugging

Velocity-PDE Development Suite

  • Velocity-PDE platform development environment including Eclipse-based Velocity-IDE
  • Royalty-free license to FPGA IP
  • Velocity-EHF framework and portability layer
  • Multiple software and FPGA reference designs with source
  • Remote target management and debugging
  • One year of development support

iVeia’s Sierra platform is flexible, compact, and designed for production applications (but also is great for prototyping!). The platform can support an Atlas-I up to an Atlas-III system-on-a-module for complex algorithm processing. Through the two Mini-Flex I/O interfaces a number of different I/O configurations can be supported, including high-speed analog-to-digital and digital-to-analog converters, high-definition video interfaces, as well as board-mounted CMOS cameras. Further scale your application by using Sierra as a PCIe plug-in card.
