Atlas-I-Z8

Zynq Processing System (PS)

• AMD Zynq UltraScale+ MPSoC
• ZU2CG, ZU2EG, ZU3EG, ZU4EV, ZU4CG, ZU5EV, ZU5EG.
• Quad-Core ARM® Cortex™-A53 up to 1.5GHz
• Support for Zynq UltraScale+ Video Codec Unit (VCU) with ZU4EV and ZU5EV devices
• 32KB I/D L1 Cache per core, 1MB L2 Cache
• Dual-core ARM® Cortex-R5 up to 600MHz
• Mali™-400MP Graphics Processing Unit

Zynq Programmable Logic (PL)

• 103K to 256K logic cells
• 5.2Mb to 23.1Mb of Block/Ultra RAM
• 240 to 1,056 DSP slices
• 12 AXI4 PS-PL interconnects up to 128b wide

Memory/Flash

• 4GBx32 LPDDR4-1867 connected to PS
• 2GB of 32-bit wide DDR4-2667 dedicated to PL (optional)
• 4GB or 32GB of eMMC NAND Flash (optional)
• microSD memory card slot (optional)
• 128MB of QSPI NOR Flash, option for Micron Authenta

Dedicated I/O

• PCIe®x2 Gen2
• DisplayPort video output
• SATA 3.0
• Tri-Mode Gigabit Ethernet x3 (SGMII)
• Two USB 3.0 On-the-Go (Super Speed)
• SD/SDIO (or SPI), I2C, UART, JTAG

Flexible I/O

• 54 multi-standard flexible I/O in 4 banks
• Additional PS peripherals available on the Flex I/O Connector using PS EMIO:
• Gigabit Ethernet using RGMII
• SDIO
• SPI, UARTs, I2C
• CAN (up to 2)
• PS GPIO

Power/Environmental/Mechanical

• 3.3V power input
• Typical operation less than 2W
• -40°C to 85°C (I) or -30°C to 85°C (W) operation
• 1.25” x 3.375 x 0.25 (31.8mm x 85.7 x 6.4)
• High-performance Samtec QTH connectors with 5mm stack height

Features

• Smaller than a credit card – 1.25” x 3.375 x 0.25 (31.8mm x 85.7 x 6.4)
• AMD Zynq UltraScale+™ ZU2CG, ZU2EG, ZU3EG, ZU4EV, ZU4CG, ZU5EV, ZU5EG.
• Typical operation under 2W
• Optional 32-bit bank of DDR4-2667 dedicated to programmable logic, a must for serious processing
• Wind River VxWorks®
• Linux 4.x OpenEmbedded/Yocto distribution supported by iVeia
• Scalable Atlas Form Factor: Scales from Zynq 7010 to ZU15EG in a single socket
• Future-proof Atlas architecture: drop a next generation SoM into your existing design
• Rugged design ideal for automotive, industrial, and military applications
• Contact us for available custom options
• Made in USA

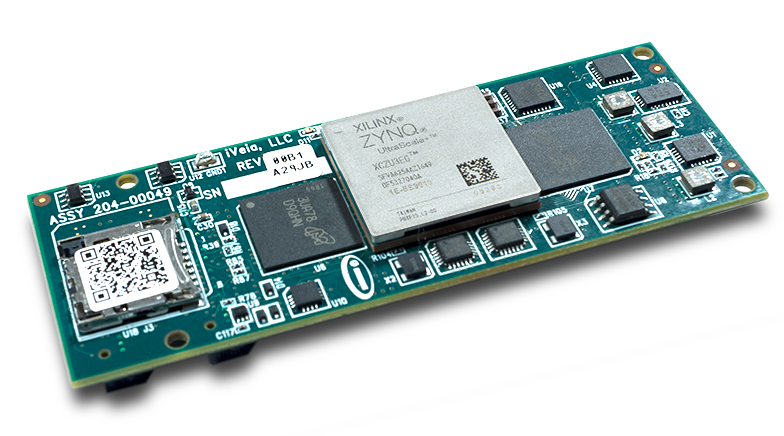

The Atlas-I-Z8 System-on-a-Module (SoM) is an advanced high performance heterogeneous computing architecture on a module smaller than a credit card. The Atlas-I-Z8 is designed for compute-intensive production applications that are sensitive to power, reliability, size, and cost. Featuring the 16nm Zynq UltraScale+ Multi-Programmable System-on-a-Chip, the Atlas-I-Z8 combines a quad-core 64-bit ARM CPU architecture with abundant programmable logic resources, including over 1,000 DSP blocks. Incredibly, an additional 32-bit DDR4 memory bank dedicated to the programmable logic has been added to the design for processing intensive applications…and all with no buried or blind vias.As with all of iVeia’s Atlas SoMs, the Atlas-I-Z8 is designed and built for reliable operation in harsh environments and is fully compatible with all Atlas-compliant baseboards. The flexible Atlas architecture allows for system scalability in performance, I/O, size, and power, and provides a migration path between differing technologies and future Atlas modules.

The Atlas-I-Z8 supports iVeia’s Velocity-HF™ heterogeneous framework that accelerates development time by up to 50% or more and provides an application portability layer between different modules and processor technologies. Also offered are iVeia’s RTL-optimized libraries for signal processing (Velocity-SDR™) and video processing (Velocity-VIP™).

Not exactly what you’re looking for? Be sure to check out our other Zynq UltraScale+ based SoMs, the Atlas-II-Z8 and the Atlas-III-Z8
