Atlas-I-LPe

Atlas-I-LPe

Low Power System-on-a-Module

Low-Power ARM+DSP+FPGA

Processor


  • Texas Instrument DM3730 (contact sales for other options)
  • Up to 1GHz ARM Cortex-A8 Core
  • NEON SIMD Coprocessor
  • Up to 800 MHz TMS320C64x+ DSP Core
  • Linux 3.x and Android 4.x OS support


Spartan FPGA


  • AMD Spartan-6 LX16 (Option for LX45)
  • 1050 MHz Clocking Technology
  • Memory Block Capacity up to 2 MB
  • Integrated DSP48A1 Slices
  • iVeia Velocity-EHF Processor/FPGA Framework


Memory/Flash


  • Memory – LPDDR 512MB (Option for 1GB) DDR-333
  • Flash – On board microSD up to 16GB


Dedicated I/O


  • USB 2.0 On-The-Go (OTG)
  • USB 2.0 host (two total USB interfaces)
  • Secure-Digital memory card (SD and SDIO)
  • I2C and UART
  • Analog Audio Line In, Microphone In, Stereo Headphone/Line Out
  • 3-by-4 keypad matrix
  • JTAG
  • High-performance Samtec QTH connector


Flexible I/O



  • 54 user-configurable flex-I/O in two independent banks
  • Gigabit Ethernet (RGMII)
  • I2C, SPI, UART, and general-purpose I/O
  • Digital video: DVI/HDMI, Camera Link, GigE Vision, BT656
  • High-speed ADC and DAC interfaces
  • I2S digital audio
  • High-performance Samtec QTH connector


Features


  • Size – 1.249″W x 3.37″L x 0.25″H
  • Highest performance per watt of power
  • Advanced power modes for ARM/DSP and FPGA
  • Processor – Texas Instrument DM3730
  • FPGA – AMD Spartan®-6 up to LX45
  • Memory – LPDDR 512MB (Option for 1GB)
  • Flash – On board microSD up to 16GB
  • Compatible with any Atlas-I, Atlas-II, or Atlas-III base board
  • Scalable Atlas Form Factor: Scales from Zynq 7010 to ZU19EG in a single socket
  • Future-proof Atlas architecture: drop a next generation SoM into your existing design
  • Rugged design ideal for automotive, industrial, and military applications
  • Contact us for available custom options
  • Made in USA

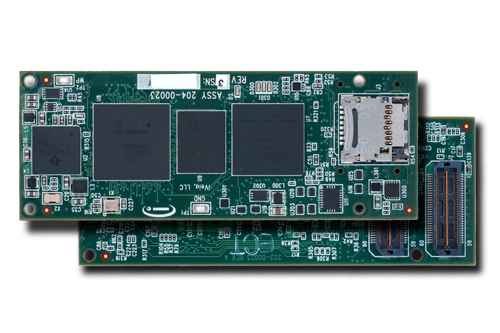

The Atlas-I-LPe™ is a low power, small form factor processing module featuring the Texas Instruments OMAP processor and the AMD Spartan-6 FPGA. The OMAP architecture consists of an ARM Cortex™-A8 processor core and an optional Texas Instruments TMS320C64x+™ Digital Signal Processor core in a single device. The Spartan-6 FPGA is an advanced low power FPGA with hardened DSP blocks and SRAM blocks enabling additional high-speed signal processing. The Atlas-I-LPe module has an ARM Cortex -A8 running up to 1 GHz coupled with a low-power AMD Spartan-6 LX16 FPGA. The Spartan-6 provides easy glue-less physical interfaces, flexible ARM peripheral expansion, and co-processing capability.
