System on a Module

Atlas System-On-A-Modules

Production Ready Heterogeneous Computing Modules

iVeia’s Atlas System-on-a-Modules are designed and built for reliable operation in production applications. The flexible Atlas architecture allows for system scalability in performance, I/O, size, and power, and provides a migration path between differing technologies and future Atlas modules.



At iVeia, all of our Atlas SoMs are manufactured in the USA using state-of-the-art fabrication and assembly techniques.



Add your title here

This is the text area for this paragraph. To change it, simply click and start typing. Once you've added your content, you  can customize its design by using different colors, fonts, font sizes and bullets. Just highlight the words you want to design and choose from the various options in the text editing bar.

This is the text area for this paragraph. To change it, simply click and start typing. After adding your content, you can customize it.

Atlas Form Factor

There are three Atlas sizes (Atlas-I, Atlas-II, and Atlas-III), the smallest is smaller than a business card and the largest is only slightly larger than a credit card. Atlas slots for larger modules support the smaller ones, so a baseboard with an Atlas-II slot can support all Atlas-I and Atlas-II modules, and an Atlas-III slot can support all Atlas sizes.



Atlas Reliability

Our Atlas SoMs are designed from the ground up to operate reliably. Despite the aggressive board densities, we use proven manufacturing tolerances/materials and design techniques to ensure reliable operation. For instance, we do not use blind or buried vias to reduce risk of board delamination due to thermal or mechanical stress. Our industrial temperature designs account for derated component operation at temperature extremes, rather than simply replacing commercial temperature parts with industrial temperature ones.

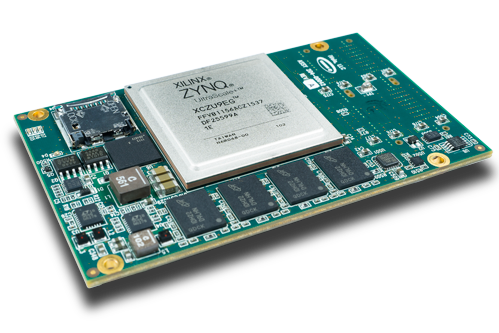

  • Zynq® UltraScale+, quad core ARM Cortex-A53 up to 1.5GHz
  • Support for ZU2CG, ZU2EG, ZU3EG, ZU4CG, ZU4EV, ZU6EG, ZU7EV, ZU9EG, ZU11EG, ZU15EG, and ZU19EG devices
  • Memory dedicated to both the processing system (PS) and programmable logic (PL)
  • Up to 8GB of PS memory
  • Up to 16 Multi-Gigabit Transceivers (MGTs) capable of 16.375 Gb/s operation
  • Up to 216 Flexible I/Os in 6 Banks
  • Low-power option with LPDDR4 memory
  • High-performance option with 16 MGTs, PCIe Gen4, and 8GB of PL memory
  • Atlas-I, Atlas-II, and Atlas-III form factors available


  • Zynq® 7000, dual core ARM Cortex-A9up to 1.0GHz
  • Support for Zynq 7020, 7030, 7035, and 7045 devices
  • Memory dedicated to both the processing system (PS) and programmable logic (PL)
  • Max PS memory of 2GB
  • Up to six Multi-Gigabit Transceivers (MGTs) capable of 12.5 Gb/s operation
  • Up to 108 Flexible I/Os in 4 banks
  • Low-power option with LPDDR2 memory
  • Atlas-I and Atlas-II form factors available



  • TI DaVinci ARM® (1 GHz) + DSP (DM3730)
  • Spartan-6 LX16 or LX45 FPGA
  • C6000 DSP core up to 800 MHz
  • Excellent power management for both CPU and FPGA
  • Ideal for low-power/battery-power applications
  • Up to 1GB of LPDDR memory dedicated to ARM
  • Atlas-I form factor
