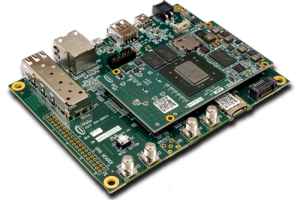

Mosaic

Software-Defined Radio Platform

Hybrid SDR Platform

Specifications


  • Atlas-I or Atlas-II module site
  • Dual high-speed 14-bit or 16-bit ADC with programmable sample clock, up to 250 MSPS
  • High-speed interpolating DAC with programmable sample clock up to 1GSPS
  • Gigabit Ethernet interface through standard RJ-45 jack
  • SFP+ Module interface that supports 10 Gigabit Ethernet or additional Gigabit Ethernet interface (Atlas-II Only)
  • One USB 2.0 On-The-Go (OTG) interface and one USB 2.0 host interface
  • Expansion module site, options include WiFi and GPS position and timing (TBD)
  • Switchable on-board 10 MHz TCXO oscillator, FPGA generated, or external clock reference
  • General-purpose input that may be used for optional 1 PPS or IRIG-B timing reference
  • Four general-purpose logic-level I/O through front-panel connector
  • Expansion header with up to 18 FPGA flexible I/O (Atlas-II only)
  • Line-level analog audio in and out and microphone in (Atlas-I only)
  • 15 VDC or 9 VDC clean power output for powering external RF circuitry
  • Low-speed DAC for front-end gain control
  • Ejectable SD memory card
  • Wide range 9-24 VDC input power
  • USB console for debugging and maintenance
  • JTAG port for debugging



Velocity-PDE Development Suite



  • Velocity-PDE platform development environment including Eclipse-based Velocity-IDE
  • Royalty-free license to FPGA IP
  • Velocity-EHF framework and portability layer
  • Multiple software and FPGA reference designs with source
  • Remote target management and debugging
  • One year of development support


Features


  • Size 13 x 9.5 cm (~5″ x 3.75″)
  • Atlas-I or Atlas-II system-on-a-module site
  • Dual high-speed 16-bit 250 MSPS Analog-to-Digitial Converters
  • High-speed 14-bit 1 GSPS Digital-to-Analog Converter (Optional)
  • Programmable ADC and DAC sample clocks with optional external reference
  • 10 Gigabit Ethernet interface (Atlas-II Only)
  • Full Embedded Linux distribution and API’s supplied and supported by iVeia
  • Reference designs for instrumentation and software-defined radio (SDR) applications


iVeia’s Mosaic platform is flexible, compact, and designed for production applications (but also is great for prototyping!). The platform can support any of iVeia’s Atlas-I or Atlas-II modules allowing users to scale their application needs for size, power, and performance. Mosaic supports iVeia’s Software-Defined Radio (SDR) library, Velocity-EHF application framework, and a suite of examples to get you started quickly.
