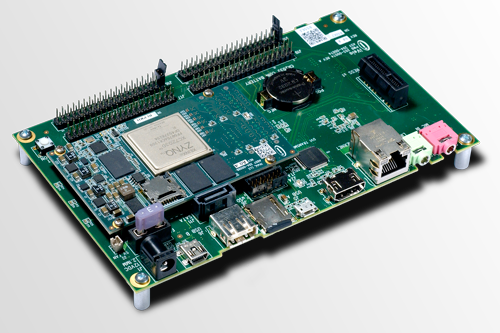

Captiva

Low Cost Baseboard for Atlas SoMs

Specifications

• Atlas-I or single Atlas-II processor sites
• Gigabit Ethernet, HDMI/DVI, USB Audio and UART interfaces
• USB mini-B Console UART connection.
• Ejectable microSD Memory Card slot which supports up to 32 GB of microSD flash memory
• USB OTG 2.0 port with micro-AB connector
• USB 2.0 Host port with a type A connector
• 10/100/1000 Ethernet port
• Optional Dual Camera Link Adapter that supports two Base interfaces or a single Medium or Full
• 165 mm x 102 mm

Velocity-PDE Development Suite

• Velocity-PDE platform development environment including Eclipse-based Velocity-IDE
• Royalty-free license to FPGA IP
• Velocity-EHF framework and portability layer
• Multiple software and FPGA reference designs with source
• Remote target management and debugging
• One year of development support

Features

• Atlas-I or Atlas-II processor module site
• GigE Vision input and HDMI Output for video processing development Velocity-VIP™
• Full OpenEmbedded Linux distribution and API’s supplied and supported by iVeia
• Reference designs for general-purpose I/O and video processing
• Optional Dual Camera Link Adapter

The Atlas-I-Z8 System-on-a-Module (SoM) is an advanced high performance heterogeneous computing architecture on a module smaller than a credit card. The Atlas-I-Z8 is designed for compute-intensive production applications that are sensitive to power, reliability, size, and cost. Featuring the 16nm Zynq UltraScale+ Multi-Programmable System-on-a-Chip, the Atlas-I-Z8 combines a quad-core 64-bit ARM CPU architecture with abundant programmable logic resources, including over 1,000 DSP blocks. Incredibly, an additional 32-bit DDR4 memory bank dedicated to the programmable logic has been added to the design for processing intensive applications…and all with no buried or blind vias.As with all of iVeia’s Atlas SoMs, the Atlas-I-Z8 is designed and built for reliable operation in harsh environments and is fully compatible with all Atlas-compliant baseboards. The flexible Atlas architecture allows for system scalability in performance, I/O, size, and power, and provides a migration path between differing technologies and future Atlas modules.

The Atlas-I-Z8 supports iVeia’s Velocity-HF™ heterogeneous framework that accelerates development time by up to 50% or more and provides an application portability layer between different modules and processor technologies. Also offered are iVeia’s RTL-optimized libraries for signal processing (Velocity-SDR™) and video processing (Velocity-VIP™).
