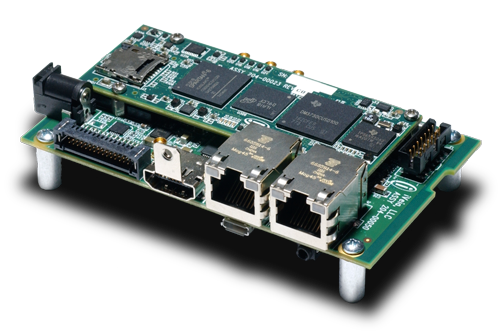

Breckenridge

Compact Video Processing Platform for Atlas-I SoMs

Compact Video Processing

Specifications


  • Dual Gigabit Ethernet interface, soft-configured to be accessible by microprocessor or directly by FPGA
  • GigE Vision FPGA IP core for connecting to compliant cameras and/or receivers (receive or transmit)
  • HDMI output or, with cable converter, can be DVI
  • Composite (NTSC/PAL) or RS-170 compatible video output
  • 3:1 composite or RS-170 compatible video input mux
  • Ejectable microSD memory card up to 32 GB capacity
  • USB 2.0 On-The-Go
  • Line-level analog audio in and out
  • One auxiliary RS-232 UART and two RS-422 UARTs
  • Six general-purpose I/O
  • Debug console interface and JTAG port
  • 12 VDC power input


Starter Kit


  • Breckenridge base board with Atlas-I processor module
  • Example software applications and source
  • Fully featured FPGA binary file with video co-processing and interfaces to all cameras
  • FPGA source with evaluation IP licenses
  • Cable kit and power supply


Features



  • Size 4.00″ x 2.32″ x 0.83″ (101.6 x 59.0 x 21.1 mm)
  • Dual Gigabit Ethernet with option for GigE Vision
  • Composite video in and out and HDMI/DVI out
  • Support for TI Davinci (Atlas-I-LPe) or AMD Zynq® (Atlas-I-Z7e)
  • Velocity-VIP™ Video and Image Processing Library


iVeia’s Breckenridge platform is a compact high-performance development platform for image and video processing or for any low-power general-purpose computing. The small footprint and analog and digital video I/O (including GigE Vision) enable development for a variety of video applications. With Gigabit Ethernet, USB 2.0, and HDMI/DVI output, it is also ideal for developing compact network or set-top box appliances. The Breckenridge base board supports any iVeia Atlas-I processor module. Custom options are available.





Velocity-PDE Development Suite


  • Velocity-PDE platform development environment including Eclipse-based Velocity-IDE
  • Royalty-free license to FPGA IP
  • Velocity-EHF framework and portability layer
  • Multiple software and FPGA examples with source
  • Remote target management and debugging
  • One year of development support
