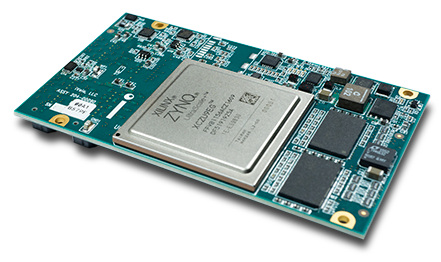

Atlas-II-Z8

Unprecedented Performance



Zynq UltraScale+ MPSoC

Zynq Processing System (PS)

• AMD Zynq UltraScale+ MPSoC
• ZU4CG, ZU4EV, ZU6EG, ZU7EV, ZU9EG, ZU15EG.
• Quad-Core ARM® Cortex™-A53 up to 1.5GHz
• 32KB I/D L1 Cache per core, 1MB L2 Cache
• Dual-core ARM Cortex-R5 up to 600MHz
• Mali™-400MP Graphics Processing Unit

Zynq Programmable Logic (PL)

• Up to 747K logic cells
• Up to 57.7Mb of Block/Ultra RAM
• Up to 3,528 DSP slices
• 12 AXI4 PS-PL interconnects up to 128b wide

Memory/Flash

• Up to 4GBx64 DDR4-2400 with ECC connected to PS
• Up to 2GBx16x2 DDR4-2400 dedicated to PL
• Up to 32GB of NAND Flash (optional)
• 128MB of QSPI Flash
• microSD memory card slot (optional)

Dedicated I/O

• PCIe®x2 Gen2
• DisplayPort video output
• SATA 3.0
• Tri-Mode Gigabit Ethernet x3 (SGMII)
• Two USB 3.0 On-the-Go (Super Speed)
• SD/SDIO (or SPI), I2C, UART, JTAG

Flexible I/O

• Multi-gigabit transceivers x8 up to 16Gb/s
• 10 GigE, PCIe, SATA 3.0, JESD204B, more
• 108 multi-standard flexible I/O in 4 banks

Power/Environmental/Mechanical

• 3.3V power input
• -40°C to 85°C (I) or 0°C to 85°C (E) operation
• 2.125” x 3.375 x 0.25 (54.0mm x 85.7 x 6.4)

Features

• Credit Card Size – 2.125” x 3.375 x 0.25 (54.0mm x 85.7 x 6.4)
• AMD Zynq UltraScale+™ ZU4CG, ZU4EV, ZU6EG, ZU7EV, ZU9EG, ZU15EG.
• Two banks of memory dedicated to programmable logic, a must for serious processing
• Green Hills Software® INTEGRITY RTOS
• Wind River VxWorks®
• Linux 4.x OpenEmbedded/Yocto distribution supported by iVeia
• Scalable Atlas Form Factor: Scales up to ZU15EG in a single socket
• Future-proof Atlas architecture: drop a next generation SoM into your existing design
• Rugged design ideal for automotive, industrial, and military applications
• Contact us for available custom options
• Made in USA

The Atlas-II-Z8 System-on-a-Module (SoM) is an advanced high performance heterogeneous computing architecture on a module the size of a credit card. Featuring the 16nm Zynq UltraScale+ Multi-Programmable System-on-a-Chip, the Atlas-II-Z8 combines a quad-core 64-bit ARM CPU architecture with abundant programmable logic resources, including over 3,000 DSP blocks.

A wide bank of high speed DDR4 memory is dedicated to the programmable logic to support demanding image/video and signal processing applications.As with all of iVeia’s Atlas SoMs, the Atlas-II-Z8 is designed and built for reliable operation in harsh environments and is fully compatible with all Atlas-compliant baseboards. The flexible Atlas architecture allows for system scalability in performance, I/O, size, and power, and provides a migration path between differing technologies and future Atlas modules.

The Atlas-II-Z8 supports iVeia’s Velocity-HF™ heterogeneous framework that accelerates development time by up to 50% or more and provides an application portability layer between different modules and processor technologies. Also offered are iVeia’s RTL-optimized libraries for signal processing (Velocity-SDR™) and video processing (Velocity-VIP™).

Not exactly what you’re looking for? Be sure to check out our other Zynq UltraScale+ based SoMs, the Atlas-I-Z8 and the Atlas-III-Z8.
