Atlas-I-Z7e Zynq 7020 SoM

Atlas-I-Z7e

Low Power Zynq® System-on-a-Module (SoM)


Features

  • Size – 1.25″W x 3.37″L x 0.25″H (3.18cm x 8.60cm x 0.64cm)
  • Programmable Logic – AMD Zynq®-7020
  • Processor – Dual Core Cortex™-A9 up to 800 MHz
  • Low-Power LPDDR2 Memory
  • External memory dedicated to programmable logic, a must for serious processing
  • Operating System – Linux 3.x OpenEmbedded Distribution Supported by iVeia
  • Scalable Atlas Form Factor: Compatible with any Atlas-I, Atlas-II, or Atlas-III base board

Processor

  • Dual ARM® Cortex™ – A9 Core up to 800 MHz
  • NEON™ SIMD and SP/DP FPU Extensions
  • 32KB I/D L1 Cache, 512KB L2 Cache, 256KB On-chip

Zynq FPGA

  • AMD Zynq®7020
  • 85K Logic Cells (1.3M Approximate ASIC Gates)
  • 220 Programmable DSP Slices
  • 560KB of Internal Block RAM
  • iVeia Velocity-EHF Processor/FPGA Framework

Memory/Flash

  • 256MB LPDDR2 connected to the processor (option for 512MB)
  • 256MB LPDDR2 connected to the FPGA (option for 512MB)
  • On-board microSD Flash memory card slot (up to 32GB)

Dedicated I/O

  • USB 2.0 On-The-Go (OTG)
  • USB 2.0 host (two total USB interfaces)
  • Secure-Digital memory card (SD and SDIO)
  • I2C and UART
  • Analog Audio Line In, Stereo Headphone/Line Out
  • 3-by-4 keypad matrix
  • JTAG
  • High-performance Samtec QTH connector

Flexible I/O

  • 54 user-configurable flex-I/O in two independent banks
  • Gigabit Ethernet (RGMII)
  • Additional SD/SDIO
  • CAN, I2C, SPI, UART, and general-purpose I/O
  • Digital video: DVI/HDMI, Camera Link, GigE Vision, BT656
  • High-speed ADC and DAC interfaces
  • I2S digital audio
  • High-performance Samtec QTH connector

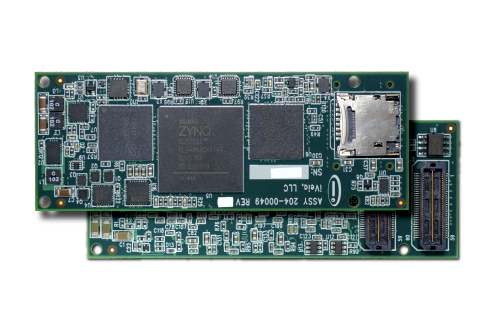

The Atlas-I-Z7e™ is a low power, small form factor system-on-a-module (SoM) featuring the AMD Zynq™-7000 Extensible Processing Platform. The Zynq-7000 architecture consists of a dual core 800 MHz ARM® Cortex™-A9 and 28nm programmable logic inside a single chip. The ARM cores and logic are connected by a series of high-speed AXI interconnects and cross-point switches. Excellent for high-performance low-power applications, the Atlas-I-Z7e features low-power sleep modes for applications with lower duty cycles.
