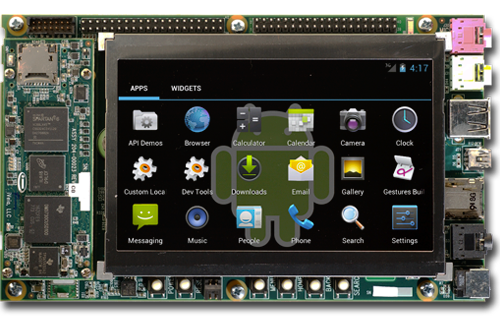

Arcadia

Specifications


  • 54 user-configurable I/O connected to FPGA
  • 5.0″ sunlight-readable IPS LCD, 800×480 resolution (WVGA)
  • Projected capacitance (PCAP) touchscreen similar to most mobile phones and tablets
  • Touchscreen controller with multi-touch gesture support
  • Analog microphone input and stereo headphone/line output
  • USB 2.0 On-The-Go (OTG) with target and host support
  • Charging via USB through the OTG port or via external 5 VDC power supply
  • USB 2.0 host port (total of two USB ports)
  • Ejectable microSD memory card up to 32GB
  • Built-in 15 Wh Lithium Ion battery
  • 802.11 b/g/n WiFi
  • Bluetooth 2.0
  • GPS
  • 3-axis accelerometer and compass
  • JTAG
  • Standard Android navigation buttons
  • Power and reset buttons


Development Kit


  • iVeia’s Velocity-PDE™ for Android
  • FPGA IP cores, software libraries, and examples
  • Cable kit and power supply


Arcadia - Features



  • Support for TI Davinci (Atlas-I-LPe) or AMD Zynq™ (Atlas-I-Z7e)
  • Fully-Supported iVeia Android™ Distribution
  • Bright 7″ LCD Display w/PCAP Touchscreen
  • WiFi, Bluetooth, GPS, Compass, Accelerometer


iVeia’s Arcadia platform is ideally suited to the development of “embedded Android” products, low-power handheld and tablet products that differentiate themselves from typical consumer devices. With ample flexible I/O and peripheral expansion the Arcadia platform can quickly adapt to your product requirements improving time-to-market. The Arcadia base board supports any of iVeia’s ARM-based Android-ready modules. Custom options are available.
